Description
• Brand: Carrier
• Power: 5 HP
• Type: Free Stand
• Cooling System: Cool & Heat
• Cooling Capacity: 33,500 BTU/hr
• Heating Capacity: 33,500 BTU/hr
• Energy Saving: Not Energy Efficient
• Color: White
Air Conditioner Specifications
- Tropical Compressor for hot climates
- 3D Automatic Airflow Direction for uniform cooling
- Turbo Function for rapid cooling
- Self-Diagnosis for fault detection
- Temperature Tracking function based on your location
- Easy and Quick Service & Maintenance
Air Conditioner Type: Cooling & Heating
Model Information:
- Air Conditioner Model: 53QFJT36N-708
- Indoor Unit Model: 42QFJT36N-708
- Outdoor Unit Model: 38QFJT36N-708
Cooling Specifications:
- Cooling Capacity: 33,500 BTU/hr (9.82 kW)
- Cooling Power Consumption: 3045 Watts (14.17 Amps)
- Cooling Energy Efficiency Ratio (EER): 11.00 BTU/Watt.hr (3.22 W/W)
- Energy Efficiency Rating: B
Heating Specifications:
- Heating Capacity: 33,700 BTU/hr (9.88 kW)
- Heating Power Consumption: 2862 Watts (13.08 Amps)
- Heating Energy Efficiency Ratio (COP): 3.45 W/W

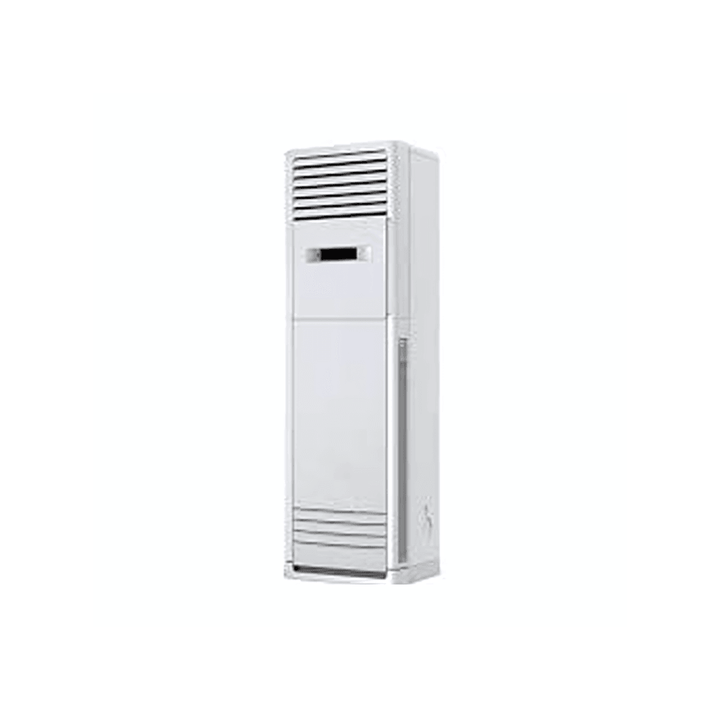

Indoor Unit (42QDMT36DN-718 A6)
- Dehumidification Rate: 3.25 Liters/hour
-
Airflow Rate (High - Low):
- 1015 – 881 CFM
- 1726 – 1497 m³/h
- Sound Pressure Level (dB): 58.9 – 55.9 – 50.00
- Net Dimensions (W x H x D): 540 × 810 × 410 mm
- Net Weight: 51 kg

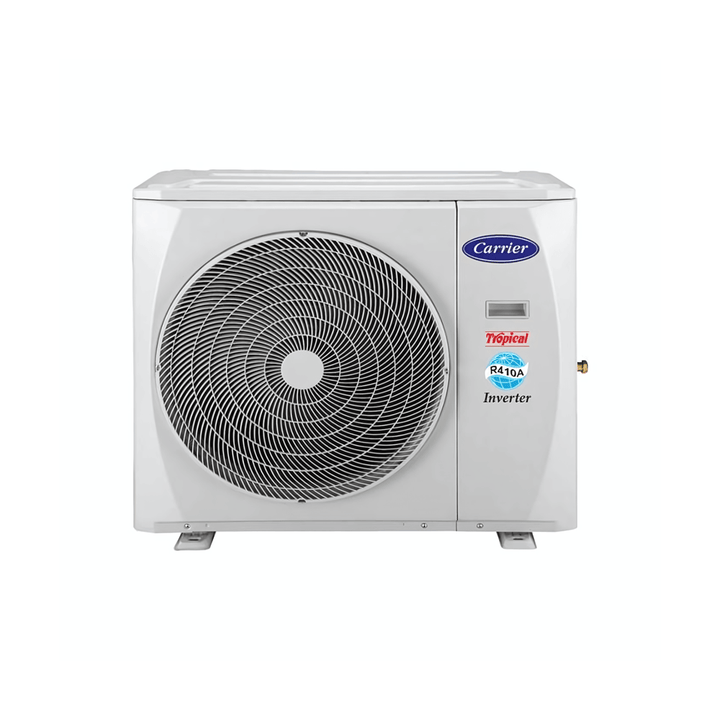

Outdoor Unit (38QFJT36N-708)
- Compressor Type: Tropical Dual Rotary
- Pipe Connection Type / Refrigerant Type: Flare / R410A
- Sound Pressure Level: 64.3 dB
- Net Dimensions (W x H x D): 945 × 810 × 400 mm
- Net Weight: 69 kg
Installation Data:
- Pipe Connection Diameter (Gas Line × Liquid Line): 3/4" × 3/8"
- Maximum Pipe Length: 25 meters
- Maximum Height Difference (Indoor to Outdoor Unit): 15 meters
- Condensate Drain Hose Diameter: 19 mm
-
Electrical Wiring from Power Source to Outdoor Unit:
- Wire Size: 6 mm²
- Number of Wires: 2 Wires + 1 Ground
-
Electrical Wiring from Power Source to Indoor Unit:
- Wire Size: 1 mm²
- Number of Wires: 5 Wires + 1 Ground
- Power Supply (Voltage × Phase × Frequency): 220V – 1 Phase – 50Hz
